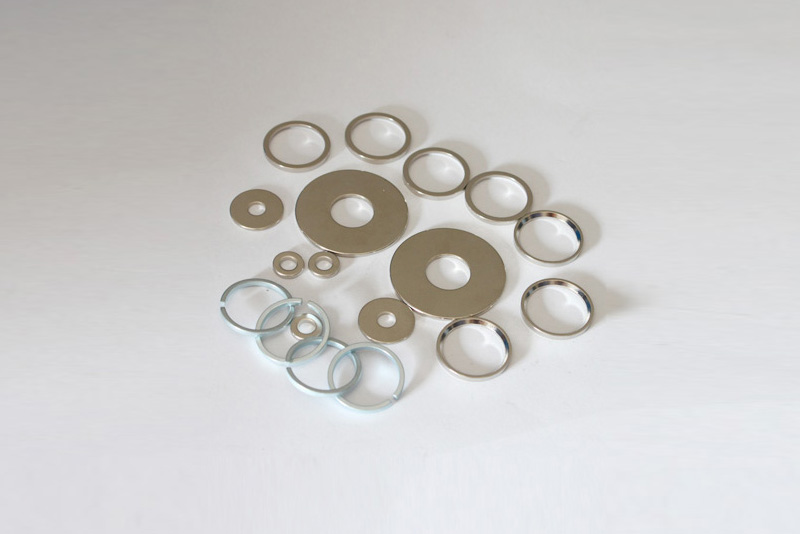

Ring Magnet
Permanent Nd Magnet in Ring shape, it is very popular used in industrial Motor and Loudspeaker Acoustic Component applications.
Why choose us?
1) Over decades experience in NdFeB manufacturing and Marketing
2) Operating well under TS16949
3) Samples and trial orders are welcome
4) Competitive Price & Short Lead Time, cause it is directly from real producer.
5) Professional suggestion or advice is available when you have doubts in design.
Product Information:
|
Product name |
Permanent NdFeB Ring Magnet, Nd Ring magnet, Neo Ring magnet, Rare earth Ring magnet | |
|
Material |
Neodymium iron boron, Neo Magnet, Nd Magnet, Rare earth Magnet |
|
|
Grade & working Temperature |
Grade |
Max Operating Temperatures |
|
N35-N54 |
80°C (176°F) |
|
|
35M-52M |
100°C (212°F) |
|
|
35H-50H |
120°C (248°F) |
|
|
33SH-48SH |
150°C (302°F) |
|
|
28UH-45UH |
180°C (356°F) |
|
|
28EH-42EH |
200°C (392°F) |
|
|
28AH-40AH |
230°C (446°F) |
|
|
Shape |
Ring, but Disc, Block or Rectangular or Cuboid, Cylinder, Arc and Irregular shape are also available | |
|
Coating |
Ni, Ni-Cu-Ni, Electroless Nickel, Zinc, Colored Zinc, Epoxy, Passivation, Phosphated, Everlube, Au, Ag, Sn etc. | |
|
Magnetized direction |
Axially or Diametrical Magnetized, but Thickness, Diametrical, Multipoles and Radial magnetization are also available, Customized magnetization is welcome. | |
|
Application |
Servo motor,Brushless motor, Linear Motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Inverter Compressor Motor , Rail Transit Traction Motor, Consumer Electronics, Wind turbine, Energy-saving Elevator, Loudspeaker, Magnetic switch, VCM, MRI, Magnetic separator, sensor etc. | |
|
Certificate |
ISO/TS 16949, ISO9001, ISO14001, RoHS, REACH | |
|
Packing |
Standard sea or air packing, such as carton, wooden box, pallet etc. | |
|
Lead time |
7 days for samples, 15-20 days for mass production. | |
|
Transportation |
All shipping methods are available: courier (TNT, DHL, FedEx, UPS), air or sea. Shipper or freight forwarder can be appointed by either purchaser or TC. |
|
