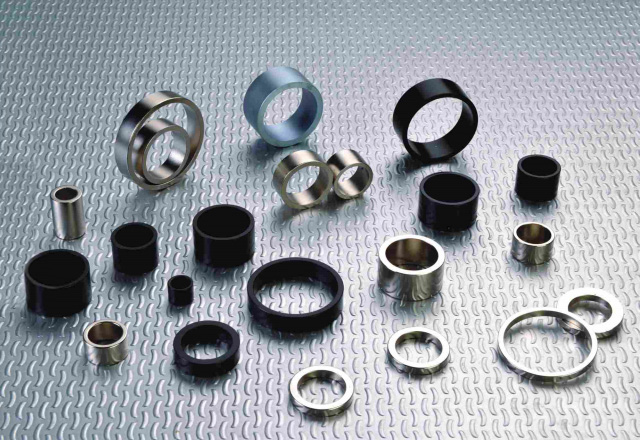

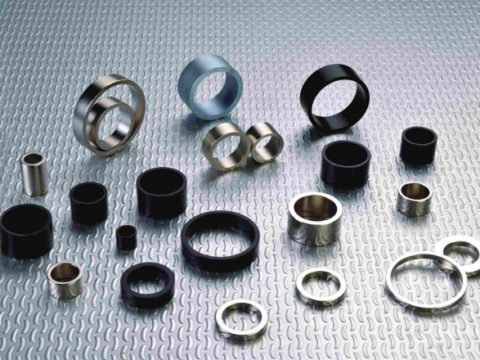

Radial Oriented Ring
Permanent Nd Magnet in Radial Oriented Ring shape, it is very popular used in Servo motor, Brushless motor, Stepper motors, Automotive Motor, Robot Driving Motor applications.

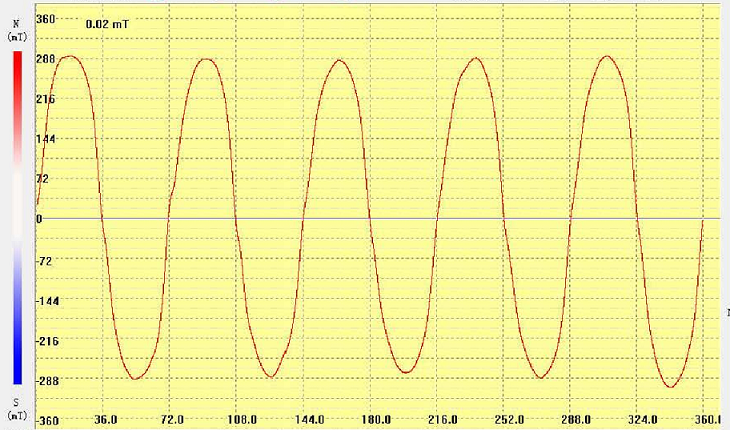

10 poles Radial Ring Magnet Surface Flux Density Distribution Chart
Why choose us?
1) Over decades experience in NdFeB manufacturing and Marketing
2) Operating well under TS16949
3) Samples and trial orders are welcome
4) Competitive Price & Short Lead Time, cause it is directly from real producer.
5) Professional suggestion or advice is available when you have doubts in design.
Product Information:
|
Product name |
Permanent Radial Oriented Ring Magnet, Nd Ring magnet, Neo Ring magnet, Rare earth Ring magnet | |
|
Material |
Neodymium iron boron, Neo Magnet, Nd Magnet, Rare earth Magnet |
|
|
Grade & working Temperature |
Grade |
Max Operating Temperatures |
|
N35-N50 |
80°C (176°F) |
|
|
35M-48M |
100°C (212°F) |
|
|
35H-45H |
120°C (248°F) |
|
|
33SH-42SH |
150°C (302°F) |
|
|
28UH-38UH |
180°C (356°F) |
|
|
Shape |
Radial Oriented Ring Magnet, but Disc, Block, Cylinder, Arc and Irregular shape are also available | |
|
Coating |
Ni, Ni-Cu-Ni, Zinc, Colored Zinc, Epoxy etc. | |
|
Magnetized direction |
Radial magnetization, but Thickness, Axially, Diametrical, Multipoles are also available, Customized magnetization is welcome. | |
|
Application |
Servo motor, Brushless motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Loudspeaker, Magnetic switch, sensor etc. | |
|
Certificate |
ISO/TS 16949, ISO9001, ISO14001, RoHS, REACH | |
|
Packing |
Standard sea or air packing, such as carton, wooden box, pallet etc. | |
|
Lead time |
50 days for samples ( 30 days for new Mold, 20 days for production). 15-20 days for bulk production. |
|
|
Transportation |
All shipping methods are available: courier (TNT, DHL, FedEx, UPS), air or sea. Shipper or freight forwarder can be appointed by either purchaser or TC. |
|
Product Advantages:
● Precision of geometry
● Variety of magnetic configuration
● Magnetic field distribution is very Homogeneous
● Very smooth of motor performances
● Easily to realize automatic assembly
● Huge marketing potential
● Labor-saving
