Irregular Magnet

Categories: ,

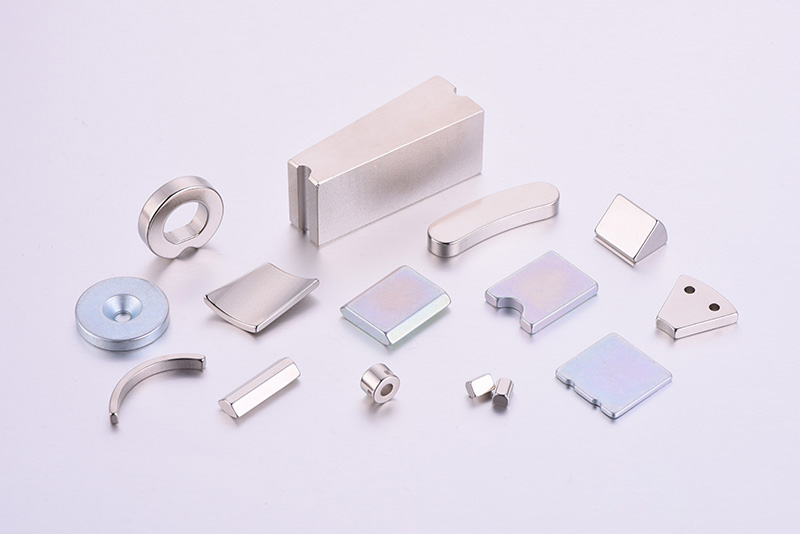

Irregular Magnet

Permanent Nd Magnet in irregular shape, it is very popular used in Consumer Electronics applications.
Why choose us?
1)     Over decades experience in NdFeB manufacturing and Marketing
2)     Operating well under TS16949
3)     Samples and trial orders are welcome
4)     Competitive Price & Short Lead Time, cause it is directly from real producer.
5)     Professional suggestion or advice is available when you have doubts in design.
Product Information:

Product name

Permanent NdFeB Irregular Magnet, Nd Irregular magnet, Neo Irregular magnet, Rare earth irregular magnet.

Material

Neodymium iron boron, Neo Magnet, Nd Magnet, Rare earth Magnet

Grade & working Temperature

Grade

Max Operating Temperatures

N35-N54

80°C     (176°F)

35M-52M

100°C   (212°F)

35H-50H

120°C   (248°F)

33SH-48SH

150°C   (302°F)

28UH-45UH

180°C   (356°F)

28EH-42EH

200°C   (392°F)

28AH-40AH

230°C   (446°F)

Shape

Irregular, but Disc, Ring, Cylinder, Block and Arc shape are also available

Coating

Ni, Ni-Cu-Ni, Electroless Nickel, Zinc, Colored Zinc, Epoxy, Passivation, Phosphated, Everlube, Au, Ag, Sn etc.

Magnetized direction

Customized, but Axially, Diametrical, Thickness, Multipoles and Radial magnetization are also available.

Application

Servo motor,Brushless motor, Linear Motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Inverter Compressor Motor , Rail Transit Traction Motor, Consumer Electronics, Wind turbine, Energy-saving Elevator, Loudspeaker, Magnetic switch, VCM, MRI, Magnetic separator, sensor etc.

Certificate

ISO/TS 16949, ISO9001, ISO14001, RoHS, REACH

Packing

Standard sea or air packing, such as carton, wooden box, pallet etc.

Lead time

7 days for samples, 15-20 days for mass production.

Transportation

All shipping methods are available: courier (TNT, DHL, FedEx, UPS), air or sea.
Shipper or freight forwarder can be appointed by either purchaser or TC.
