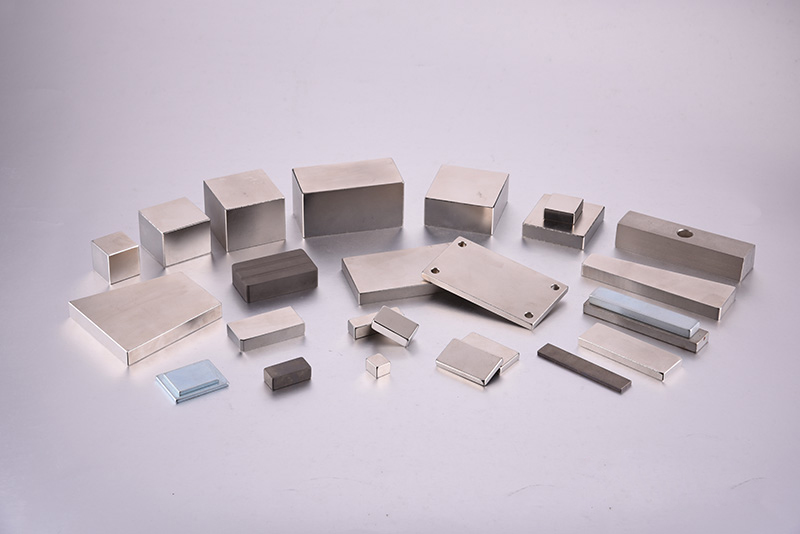

Block Magnet
Permanent Nd Magnet in Rectangular Block shape, it is very popular used in industrial Motor, Compressor, Wind turbine applications.
Why choose us?
1) Over decades experience in NdFeB manufacturing and Marketing
2) Operating well under TS16949
3) Samples and trial orders are welcome
4) Competitive Price & Short Lead Time, cause it is directly from real producer.
5) Professional suggestion or advice is available when you have doubts in design.
Product Information:
| Product name | Permanent, Nd Rectangular Block magnet, Neo Rectangular Block magnet, Rare earth Rectangular Block magnet | |
| Material | Neodymium iron boron, Neo Magnet, Nd Magnet, Rare earth Magnet | |
| Grade & working Temperature | Grade | Max Operating Temperatures |
| N35-N54 | 80°C (176°F) | |
| 35M-52M | 100°C (212°F) | |
| 35H-50H | 120°C (248°F) | |
| 33SH-48SH | 150°C (302°F) | |
| 28UH-45UH | 180°C (356°F) | |
| 28EH-42EH | 200°C (392°F) | |
| 28AH-40AH | 230°C (446°F) | |
| Shape | Block or Rectangular or Cuboid, but Disc, Ring, Cylinder, Arc and Irregular shape are also available | |
| Coating | Ni, Ni-Cu-Ni, Electroless Nickel, Zinc, Colored Zinc, Epoxy, Passivation, Phosphated, Everlube, Au, Ag, Sn etc. | |
| Magnetized direction | Thickness Magnetized, but Axially, Diametrical, Multipoles and Radial magnetization are also available, Customized magnetization is welcome. | |
| Application | Servo motor,Brushless motor, Linear Motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Inverter Compressor Motor , Rail Transit Traction Motor, Consumer Electronics, Wind turbine, Energy-saving Elevator, Loudspeaker, Magnetic switch, VCM, MRI, Magnetic separator, sensor etc. | |
| Certificate | ISO/TS 16949, ISO9001, ISO14001, RoHS, REACH | |
| Packing | Standard sea or air packing, such as carton, wooden box, pallet etc. | |
| Lead time | 7 days for samples, 15-20 days for mass production. | |
| Transportation | All shipping methods are available: courier (TNT, DHL, FedEx, UPS), air or sea. Shipper or freight forwarder can be appointed by either purchaser or TC. |
|
