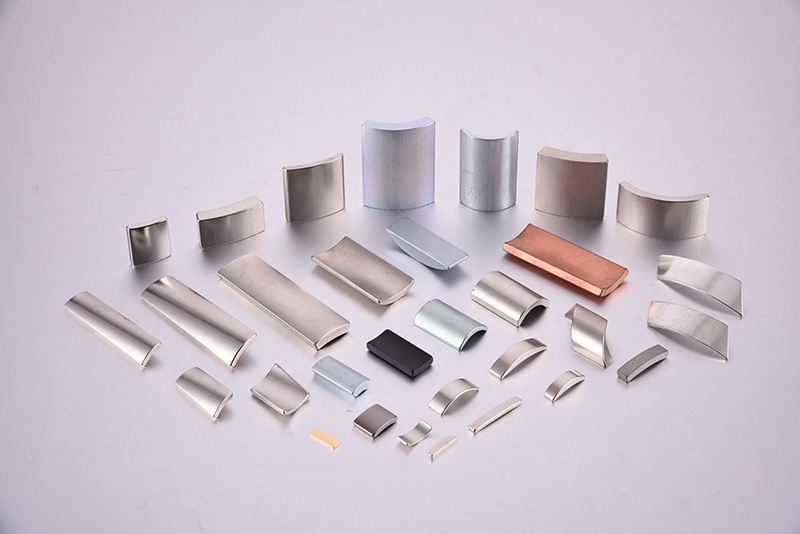

Arc Magnet
Permanent Nd Magnet in Arc or C shape, it is very popular used in industrial Motor and Energy-saving Elevator applications.
Why choose us?
1) Over decades experience in NdFeB manufacturing and Marketing
2) Operating well under TS16949
3) Samples and trial orders are welcome
4) Competitive Price & Short Lead Time, cause it is directly from real producer.
5) Professional suggestion or advice is available when you have doubts in design.
Product Information:
|
Product name |
Permanent NdFeB Arc Magnet, Nd Arc magnet, Neo Arc magnet, Rare earth Arc magnet. | |
|
Material |
Neodymium iron boron, Neo Magnet, Nd Magnet, Rare earth Magnet |
|
|
Grade & working Temperature |
Grade |
Max Operating Temperatures |
|
N35-N54 |
80°C (176°F) |
|
|
35M-52M |
100°C (212°F) |
|
|
35H-50H |
120°C (248°F) |
|
|
33SH-48SH |
150°C (302°F) |
|
|
28UH-45UH |
180°C (356°F) |
|
|
28EH-42EH |
200°C (392°F) |
|
|
28AH-40AH |
230°C (446°F) |
|
|
Shape |
Arc, but Disc, Ring, Cylinder, Block and Irregular shape are also available
|
|
|
Coating |
Ni, Ni-Cu-Ni, Electroless Nickel, Zinc, Colored Zinc, Epoxy, Passivation, Phosphated, Everlube, Au, Ag, Sn etc. | |
|
Magnetized direction |
Diametrical Magnetized, but Axially, Thickness, Multipoles and Radial magnetization are also available, Customized magnetization is welcome. | |
|
Application |
Servo motor, Brushless motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Inverter Compressor Motor, Rail Transit Traction Motor, Consumer Electronics, Wind turbine, Energy-saving Elevator, Magnetic switch, VCM, Magnetic separator, sensor etc. | |
|
Certificate |
ISO/TS 16949, ISO9001, ISO14001, RoHS, REACH | |
|
Packing |
Standard sea or air packing, such as carton, wooden box, pallet etc. | |
|
Lead time |
7 days for samples, 15-20 days for mass production. | |
|
Transportation |
All shipping methods are available: courier (TNT, DHL, FedEx, UPS), air or sea. Shipper or freight forwarder can be appointed by either purchaser or TC. |
|
